Distributed Systems Latency Budgets: Design, Measure, Enforce

Published

Jul 14, 2026

Updated

Jul 15, 2026

Reading time

20 min read

Latency is a property of an end-to-end journey, not of one fast service. A checkout that starts at a browser, crosses an edge, calls three services, waits on a database, and emits an event can fail its user-facing objective even when every team reports a respectable average response time.

A latency budget turns that vague problem into a design tool. Start with a user outcome, set a percentile-based objective, allocate time to the stages that are actually on the critical path, and reserve margin for variation and failure handling. The result is not a promise that every request will be fast. It is a shared decision framework for engineering, operations, and providers.

This discipline matters even more once a request's path spans several vendors that no single team controls end to end. A managed edge orchestration layer sits in front of an origin precisely to keep that decision framework enforceable across DNS, edge, and origin providers rather than leaving each one to defend only its own slice of the journey; distributed systems latency budgets are how that layer agrees, with every team, on where time is allowed to go before anyone starts debugging.

Running scenario: Acme Shop search

Acme Shop's /v1/search?q=running+shoes request is served through a regional edge and search gateway. The gateway must authenticate the shopper, call search and catalog in parallel, then obtain live availability before it can return results. The customer-facing objective is p95 <= 600 ms; inventory may be unavailable only if the response honestly marks availability as temporarily unavailable rather than inventing a stock value.

Start with the user journey

Define the transaction before measuring it. "API latency" is too broad; "a signed-in customer receives product search results" identifies a path that can be instrumented and protected. Record the initiating location, network class, request method, payload size, authentication state, cacheability, downstream calls, and the response that makes the journey complete.

Use separate objectives for materially different work. A cached catalog page, an authenticated search request, and a payment authorization have different correctness requirements and cannot share one latency target safely. Include availability and correctness conditions alongside time: a fast stale price or a fast partial payment response is not a successful transaction.

Example budget for a read path

For a p95 target of 600 ms from a regional client to a rendered API response, a team might allocate:

These are planning allocations, not measurements to add blindly. Parallel work consumes the elapsed time of its slowest branch, while serial calls add. Make that distinction explicit in a dependency diagram; otherwise a budget can make a sequential fan-out look harmless.

Calculate the critical path before setting timeouts

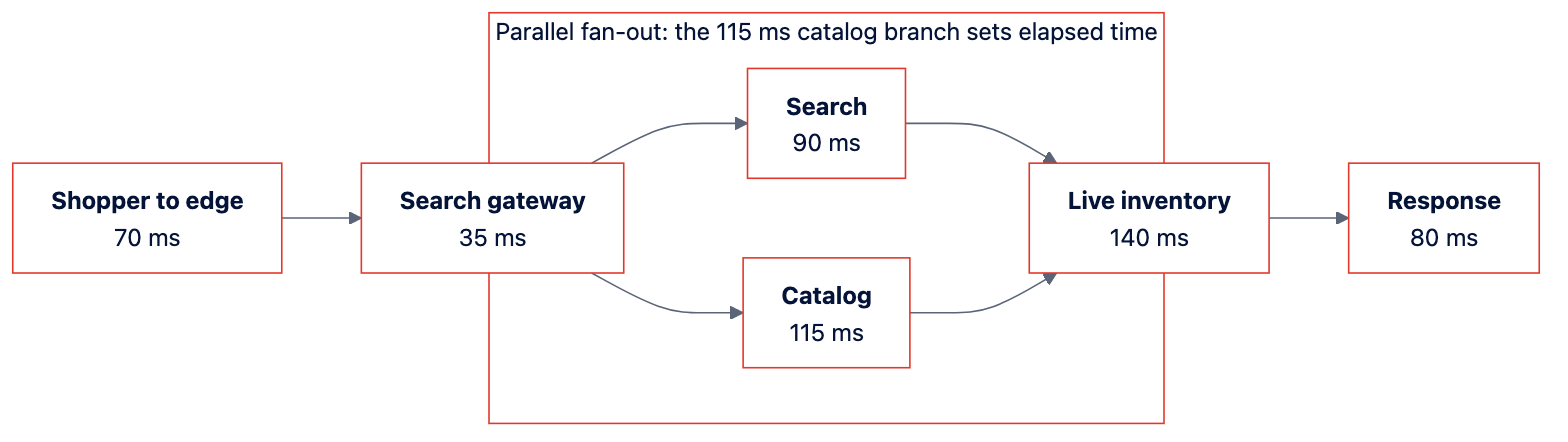

For Acme Shop, measured p95 planning values are edge transit 70 ms, gateway 35 ms, search 90 ms, catalog 115 ms, inventory 140 ms, and response serialization/transit 80 ms. Search and catalog begin together after the gateway, so the calculation is:

critical_path = 70 + 35 + max(90, 115) + 140 + 80 = 440 ms
reserve = 600 - 440 = 160 ms

The 160 ms reserve covers ordinary variance, connection acquisition, and a bounded fallback decision. It is not permission for every dependency to add a retry. A retry is considered only when the operation is safe, the caller still has a meaningful remaining deadline, and its owner has measured that it improves the outcome.

# Acme Shop gateway policy. Values are starting points to validate under load.
journey: signed-in-search
deadline_ms: 600
dependencies:
  search:
    timeout_ms: 150
    max_attempts: 1
  catalog:
    timeout_ms: 150
    max_attempts: 1
  inventory:
    timeout_ms: 175
    max_attempts: 1
fallback:
  inventory_timeout: "return results with availability_status=temporarily_unavailable"

Derive budgets from the critical path

Draw the request path from client through DNS, CDN or edge, gateway, services, data stores, and third parties. Mark each edge as serial, parallel, optional, cached, or asynchronous. Then assign a deadline to the request and smaller deadlines to the work that must finish before that deadline.

An effective timeout hierarchy leaves time for the caller to react. If the gateway has 700 ms, a service should not start a 700 ms database call after spending 300 ms on an upstream request. Propagate a deadline, not only independent fixed timeouts. Services should decline work that cannot finish usefully, release resources, and report a timeout reason that makes the exhausted stage visible.

Retries require their own budget. A retry can improve a transient failure only when there is enough remaining time, the operation is safe to repeat, and the retry will not amplify a dependency already under load. Use bounded attempts, jittered backoff, per-request retry limits, and idempotency keys for operations with business effects. Do not retry a timeout by default when the original operation may still complete.

Propagate a deadline instead of stacking fixed timeouts

The Acme Shop policy above assigns each dependency an independent timeout in milliseconds. That is a reasonable starting point, but it has a gap: a fixed 175 ms inventory timeout does not know whether the gateway has 400 ms or 40 ms left when it starts the call. Deadline propagation closes that gap by carrying one absolute deadline, set once at the edge or gateway, down through every hop; each service computes its own remaining budget by subtracting elapsed time from that shared deadline rather than trusting a locally configured constant. gRPC does this natively by converting an absolute deadline into a grpc-timeout header at each hop, and HTTP call chains can achieve the same effect with a propagated deadline timestamp read by each service's client library. The Google SRE book calls out deadline propagation specifically as a defense against cascading failure, because a caller that has already burned most of its own budget should never dispatch a dependency call with a timeout longer than the time it actually has left.

For Acme Shop, propagating the deadline would change the inventory call from "always wait up to 175 ms" to "wait up to min(175, remaining_deadline - egress_margin) ms," which is exactly what the pool-acquisition trace later in this guide shows happening in practice. The distinction matters most under partial slowness: independent fixed timeouts can let three sequential dependencies each spend close to their full allotment and blow the journey deadline even though none of them individually timed out.

Consider hedged requests for tail-sensitive branches

Timeouts and retries answer "what do we do when a call is too slow." Hedging asks a different question: can waiting on the slow tail be avoided? A hedged request sends a second copy of an idempotent, read-only call to another instance after a short delay, keeps whichever response arrives first, and cancels the other. Google's "The Tail at Scale" paper popularized the technique because a small fraction of requests to any replica are disproportionately slow, and probing a second replica after roughly the expected p90 latency catches most of that tail while most primary requests still finish before the hedge ever fires.

Hedging is easy to misuse: firing it on every request doubles backend load, and firing it only after a fixed delay still doubles load precisely when a genuine capacity incident makes every request slow enough to cross that delay. gRPC's built-in hedging policy guards against this with a token-bucket throttle, so hedges only fire while a budget replenished from normal request volume is available, and a widespread slowdown drains that budget and backs hedging off instead of amplifying the incident. For Acme Shop, the search call (90 ms p95) is a plausible hedging candidate because it is read-only and idempotent; inventory is not, since live availability must not be answered by two racing reads against a system that may also be handling concurrent writes.

Treat queueing as a latency signal

As utilization approaches capacity, waiting time often grows faster than request rate. CPU may appear acceptable while a finite connection pool, single database partition, thread pool, or upstream concurrency limit creates a queue. Measure queue depth, wait duration, active concurrency, saturation, and rejection rate alongside request latency.

Keep synchronous work deliberately small. Move non-essential work such as notifications, image processing, analytics enrichment, and some reconciliation to a durable queue when the business flow permits it. A queue protects the caller from a slow worker, but it does not erase latency: the queue age becomes part of the completion objective. Define separate targets for acceptance time and end-to-end completion time.

Apply admission control before a dependency is saturated. A bounded queue, concurrency limit, load shed response, or degraded response can preserve useful work for more users than unlimited waiting. Google SRE guidance on overload emphasizes this distinction: accepting work that cannot be completed consumes resources and can make recovery slower.

Size pools with Little's Law, not intuition

Little's Law states that the average number of requests in flight equals the arrival rate multiplied by the average time each request spends in the system: L = λ × W. It only holds in a stable queue, where arrival rate stays below service capacity; near that boundary, wait time stops growing linearly and climbs sharply, which is why utilization above roughly 70-80% on a finite resource is where p95 and p99 separate from p50 rather than track it. Acme Shop's inventory pool (active=40 limit=40 in the trace later in this guide) illustrates the sizing question directly: at a steady 140 ms average service time per call, 40 connections sustain roughly 40 / 0.140s ≈ 285 requests per second before queuing begins in earnest. At a real arrival rate of 220 requests per second, that pool has headroom; at 300, driven by a promotion, it is past its stable operating point and the 175 ms child timeout starts being consumed by queue wait rather than the inventory call itself, exactly as the trace's DEADLINE_EXCEEDED result on pool acquisition shows. Size a pool, thread count, or concurrency limit as a capacity decision tied to the budget and measured arrival rate, not a default left over from a template, and recompute it whenever traffic shape or per-call latency changes materially.

Enforce distributed systems latency budgets with circuit breakers and bulkheads

A budget and a timeout hierarchy describe the intended behavior, but distributed systems latency budgets only hold under real traffic if something mechanically stops a slow or failing dependency from consuming more of the budget than its allocation. That is latency budget enforcement, and it is usually built from two complementary mechanisms rather than one.

A bulkhead isolates the blast radius of one dependency by giving it its own bounded resource, such as a connection pool, thread pool, or semaphore, so a slow inventory dependency cannot starve the pool a healthy catalog dependency also needs. A circuit breaker stops sending calls to a dependency once it is unhealthy, so callers fail fast instead of queuing behind a known-bad state. The common implementations are not interchangeable: proxy-level breakers such as Envoy's enforce hard concurrency and pending-request ceilings per cluster with no error-rate state machine, while library-level breakers such as resilience4j track a rolling error or slow-call rate and trip open, half-open, and closed states based on it. A related, distinct mechanism, outlier detection, watches individual upstream hosts and ejects a sick one from the load-balancing pool for a fixed interval without touching the rest of the cluster; pairing host-level outlier detection with a cluster-level circuit breaker enforces at two granularities instead of one.

For Acme Shop, a bulkhead around the inventory pool is what the trace later in this guide is already showing in effect: the pool's limit=40 is a bulkhead ceiling, and its DEADLINE_EXCEEDED result at that ceiling is admission control doing its job rather than a bug. Adding a circuit breaker in front of that same dependency would let the gateway stop attempting inventory calls altogether for a short window after a run of failures, serving the temporarily_unavailable fallback immediately instead of paying pool-acquire wait on every request during an outage.

Use cache and edge controls without corrupting correctness

The edge is often the lowest-latency place to answer or reject a request, but cache configuration is part of application correctness. Cache public, representation-stable responses with an explicit Cache-Control policy. Do not cache authenticated or personalized responses in a shared cache unless the cache key and authorization model make isolation provable.

For cacheable content, define the cache key, freshness lifetime, validation behavior, invalidation path, and stale-serving policy. The stale-while-revalidate and stale-if-error Cache-Control extensions, standardized separately in RFC 5861 as companions to the core HTTP caching semantics in RFC 9111, let a cache serve a stale copy immediately while revalidating in the background, or fall back to a stale copy when the origin errors. stale-while-revalidate can reduce origin latency for tolerant reads; stale-if-error can preserve a previously valid response during an origin fault. Neither is appropriate for rapidly changing inventory, authorization decisions, or financial state without an explicit product decision.

Protect origin capacity on misses. Enable request coalescing or single-flight behavior where available so many concurrent misses for the same object do not become a thundering herd. Use an origin shield or a controlled regional tier to consolidate cache-miss traffic. Set origin connection, request-rate, and concurrency limits independently from public edge capacity, and require authenticated edge-to-origin access so clients cannot bypass those controls.

Instrument the budget across boundaries

One request identifier is helpful; distributed traces are more useful when they preserve parent-child relationships, timing, status, retries, and cache state. Adopt OpenTelemetry semantic conventions where practical for HTTP, RPC, database, messaging, and cloud resources. Propagate standard trace context through gateways, services, workers, and asynchronous messages.

Different convention groups stabilize on different timelines: OpenTelemetry publishes a stability status per domain, and database or messaging conventions have reached stable ahead of HTTP conventions in the past. Pin the semantic-convention version you emit rather than tracking "latest" automatically, so a convention change does not silently rewrite dashboard queries built on old attribute names.

At minimum, attach these dimensions to latency telemetry:

• Route and operation name, not unbounded raw URLs or user identifiers.
• Region, edge location where available, client network category, and deployment version.
• Cache status, origin shield status, response size, and protocol version.
• Dependency name, attempt number, timeout source, circuit state, and queue wait time.
• Outcome class: success, expected rejection, deadline exceeded, cancellation, or dependency failure.

Use metrics for alerting and trend detection, traces for critical-path diagnosis, and sampled logs for evidence. Control cardinality and redact secrets, tokens, payloads, and personal data. An observability design that overwhelms storage or leaks request content is not a reliability improvement.

Diagnose a budget breach from a trace

Start with traces that breached the journey threshold, then compare the slow cohort with an unaffected cohort on the same route, region, deployment, and cache state. Do not infer that the longest span is the cause until its queue wait, attempts, and downstream spans agree with the timeline.

trace_id=4f1c8e2a route=GET /v1/search region=fra cache=MISS total=397ms deadline=600ms outcome=200
edge.receive                                  68ms  status=200
gateway.authorize                             34ms  status=OK
search.query                                  87ms  status=OK
catalog.lookup                               111ms  status=OK
inventory.client                             175ms  status=DEADLINE_EXCEEDED child_timeout=175ms remaining_at_start=387ms
  inventory.pool.acquire                      175ms  status=DEADLINE_EXCEEDED active=40 limit=40 effective_deadline=175ms
  inventory.http attempt=0                      0ms  status=NOT_STARTED reason=pool_deadline_exhausted
gateway.respond                                 9ms  status=200 availability_status=temporarily_unavailable
diagnosis: the 175ms inventory timeout bounded pool acquisition. No inventory HTTP request started, and the fallback left 203ms unused in the 600ms journey budget.

The trace shows a resource queue rather than a slow inventory response. The inventory client compares the 387 ms remaining parent budget with its configured 175 ms child timeout, so pool acquisition is bounded to 175 ms before waiting begins. When that child deadline expires, it does not start an HTTP request and returns the documented fallback within the 600 ms journey budget. Confirm the pool limit, active calls, database saturation, and recent deployment before changing a timeout. A scoped concurrency reduction for optional inventory refreshes or a truthful availability fallback can protect checkout while the inventory owner restores capacity.

Validate, recover, and troubleshoot

Validate in a non-production environment or a tightly scoped, reversible production canary with approval. First establish a healthy baseline; then inject a bounded inventory delay and confirm the gateway returns the documented fallback before 600 ms. Next remove the delay and verify p95, pool wait, error rate, and trace sampling return to baseline. A negative result is a fallback on a route that requires live inventory; that is a contract defect, not a successful latency test. A failure result is a growing pool wait or queue age after the test has ended; stop the experiment and investigate capacity before continuing.

If a released timeout, cache, or concurrency change increases user impact, roll back only that versioned policy or deployment through the normal change process. Keep traces, timestamps, and the affected cohort for diagnosis. Recover by restoring the last known-safe policy, draining only work that is safe to cancel, and verifying normal latency and saturation for a defined observation window. Do not globally raise timeouts, flush all caches, or replay traffic into an already constrained dependency.

Related guides

• Reliable API Design
• Queue-Based Load Leveling
• Dependency Resilience

Make reliability tradeoffs explicit

Lower latency and stronger consistency can conflict when data spans regions. A globally replicated read model can improve nearby reads while returning slightly older data. A synchronous cross-region write can tighten durability semantics while adding network delay and coupling availability to more locations. Decide per operation whether the priority is freshness, consistency, low latency, or completion under partition, and document the fallback behavior.

Likewise, multi-provider delivery can reduce dependence on one network but adds cache, routing, certificate, logging, and incident complexity. Route only when health signals are meaningful, include hysteresis to prevent flapping, and rehearse a partial-provider failure. Provider-neutral architecture means defining the required behavior, telemetry, interfaces, and exit path before selecting a specific implementation.

Operate the budget

Review a latency budget when a user journey, dependency, traffic shape, or deployment topology changes. For each objective, maintain a dashboard showing p50, p95, p99, error rate, saturation, cache hit ratio, and the largest contributors to trace duration. Compare synthetic probes with real-user telemetry; a healthy probe from one cloud region does not represent every client network.

During an incident, first determine whether the regression is at the client/network, edge, origin, service, data store, or third-party layer. Avoid raising timeouts as a first response. Longer waits can increase concurrency and worsen a queue. Prefer a scoped mitigation: serve a safe cached representation, shed a non-critical feature, reduce fan-out, pause a batch workload, or shift traffic after validating capacity and data behavior.

Performance budget design checklist

Performance budget design is the sum of every decision in this guide; treat it as one approval gate, not independent sign-offs. Before approving a critical path, confirm it has a user-oriented p95 or p99 objective; serial and parallel dependencies are mapped with the slowest parallel branch identified; deadlines are propagated rather than fixed independently at each hop; retries are bounded and idempotent where required, and any hedging is rate-limited; cache behavior is safe for the data; pools and concurrency limits are sized against measured arrival rate and service time, not guessed; bulkheads and circuit breakers isolate the dependencies most likely to degrade; the origin has protected capacity; queue age is monitored separately from acceptance time; and traces can name the hop that spent the budget.

Authoritative references

• Google SRE Book: Addressing Cascading Failures
• Google SRE Workbook: Handling Overload
• Dean and Barroso, "The Tail at Scale," Communications of the ACM (2013)
• gRPC: Request Hedging
• IETF RFC 9111: HTTP Caching
• IETF RFC 5861: HTTP Cache-Control Extensions for Stale Content
• OpenTelemetry semantic conventions
• Microsoft Azure Architecture Center: Retry pattern
