Queue-Based Load Leveling: Reliable Scaling Without Origin Overload

Published

Jul 14, 2026

Updated

Jul 15, 2026

Reading time

17 min read

Traffic arrives in bursts; downstream systems often cannot. A product launch, batch import, webhook retry wave, or one slow dependency can turn a synchronous chain into a growing queue of waiting connections. Queue-based load leveling separates arrival rate from processing rate so producers can be acknowledged quickly and workers can consume at a controlled pace.

That separation is valuable, but not automatic reliability. An unbounded queue only moves an outage out of sight. A durable, observable queue with bounded admission, idempotent processing, and a defined completion objective turns the load leveling pattern into a scaling mechanism rather than a storage problem.

An edge orchestration layer changes where the first burst lands but not the discipline this pattern requires behind it. Optimi routes and shields traffic in front of the origin, and the queue is usually the next control point a launch-day spike reaches; treating admission, backlog age, and worker capacity as one governed system is what keeps that handoff from becoming an outage further downstream, and it is exactly the kind of cross-layer signal a managed orchestration practice has to watch continuously rather than during launch week alone.

Running scenario: Acme Shop order confirmation

After an order is accepted, Acme Shop publishes an order.confirmation.requested command. The API acknowledges durable acceptance quickly; workers send the confirmation email and update the order timeline. A duplicate delivery must not send two emails, and a temporary email-provider failure must not allow the backlog to consume database or provider capacity.

Decide which work can become asynchronous

Queue work that is durable, independently retryable, and not required to render the immediate response: media processing, notifications, index updates, report generation, partner synchronization, and many webhook side effects are common candidates. Keep a synchronous path when the caller needs an immediate authoritative answer, such as a permission decision or an inventory reservation that cannot be safely deferred.

For each queued operation, define the command or event schema, ordering requirement, owner, retention, maximum acceptable age, duplicate behavior, cancellation model, and dead-letter process. The message should carry an immutable business identity and correlation context, not a full copy of uncontrolled request data or secrets.

The Microsoft Queue-Based Load Leveling pattern describes the central tradeoff well: a queue enables independently scalable processing, but the system must tolerate eventual completion and handle the queue as a potential failure domain. It also names two patterns worth pairing with it deliberately rather than improvising: Competing Consumers, where several worker instances pull from the same queue to scale processing horizontally, and Priority Queue, where urgent work is routed around a long backlog instead of waiting behind it. Acme Shop uses both — several confirmation workers compete for the same queue, and a separate high-priority queue carries password-reset and payment-failure notifications so they never wait behind a marketing-email backlog.

Design a bounded acceptance path

The producer path should validate authentication, authorization, schema, body size, and business preconditions before it publishes durable work. Assign an idempotency key for client-initiated commands so a network timeout or retry does not create duplicate work. Return a stable operation identifier, a status endpoint or callback model, and an honest state such as accepted or queued.

Bound the queue and the producer. Set limits for message size, total backlog, per-tenant or per-operation share, publish rate, and message lifetime. When a limit is reached, reject or defer low-priority work with a documented response rather than accepting messages that cannot meet their completion objective. A 429 or 503 response can be more reliable than a multi-hour backlog with no customer visibility.

Place low-cost validation and abuse controls at the edge or gateway. Apply route-specific rate limits, request-size caps, and WAF rules where appropriate; protect the origin with private networking or a default-deny firewall, authenticated edge-to-origin traffic, and origin concurrency limits. Do not expose a publish endpoint directly to the origin merely because the worker queue is durable.

Message envelope and worker contract

Keep routing and deduplication metadata outside the business payload so consumers can make a safe decision before parsing uncontrolled content. The identifiers below are examples, not a license to place customer data in logs or queue names.

{
  "message_id": "msg_01JQ7Z8K0E4B4S7TZP9A1H3C6N",
  "type": "order.confirmation.requested",
  "schema_version": 1,
  "occurred_at": "2026-07-14T10:20:00Z",
  "traceparent": "00-4bf92f3577b34da6a3ce929d0e0e4736-00f067aa0ba902b7-01",
  "idempotency_key": "order:ord_01JQ7Z6H5B2R8M9P4K3T",
  "payload": {
    "order_id": "ord_01JQ7Z6H5B2R8M9P4K3T",
    "template": "order-confirmation-v3"
  }
}

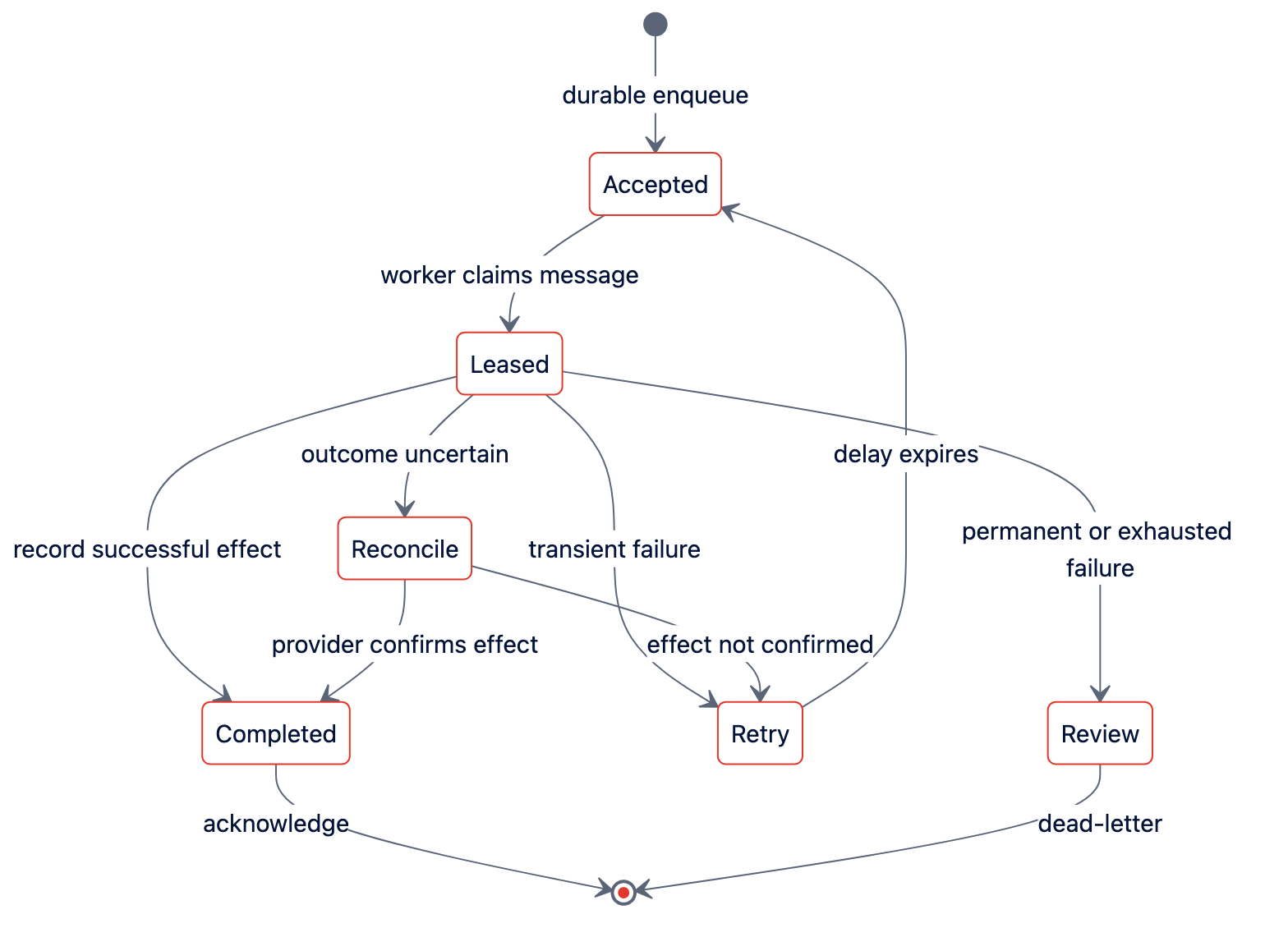

The worker claims the message, creates or reads a durable record keyed by idempotency_key, and treats an existing completed record as a successful duplicate. For an unknown outcome after an external email request, it queries the provider using its own idempotency reference before it sends again. It acknowledges only after the durable completion record has been written. Invalid schema, unsupported versions, and permanent business rejections go to the review workflow rather than being retried indefinitely.

queue=order-confirmations message=msg_01JQ...C6N attempt=1 age=2.1s
idempotency_key=order:ord_01JQ...3T decision=claimed
email_provider request_id=mail_8ff2 status=202
order_timeline status=recorded
acknowledged=true completion=184ms

queue=order-confirmations message=msg_01JQ...C6N attempt=2
idempotency_key=order:ord_01JQ...3T decision=already_completed
email_provider_call=false acknowledged=true

Make consumers idempotent and safe to retry

Most practical queues provide at-least-once delivery. A message can be delivered again after a worker crash, an acknowledgement timeout, a visibility timeout, or a failover. Exactly-once business effects require an application-level design, not confidence in a label on a queue service.

Use a durable deduplication or state record keyed by the business operation. Make the side effect and its processed marker atomic where possible. When an external side effect cannot participate in the same transaction, use a transactional outbox, inbox, or reconciliation process and retain evidence needed to resolve uncertain outcomes.

Set the processing deadline deliberately

Most managed queues give a worker a bounded window to finish a message before it becomes visible to another consumer again — a visibility timeout in Amazon SQS, a delivery or consumer acknowledgement timeout in RabbitMQ, a comparable session or lock duration elsewhere. Get this window wrong in either direction and idempotency work elsewhere in the design has to absorb the consequence. Too short, and a slow-but-healthy worker loses the message mid-flight, a second consumer picks it up, and both may complete the side effect before either acknowledges — exactly the duplicate the idempotency key exists to catch, just more often than necessary. Too long, and a worker that actually crashed leaves the message invisible and unretried for the full window, silently widening backlog age.

AWS's own guidance for SQS is a reasonable default for any queue technology: start the deadline at the maximum time a message realistically takes to process, or start conservatively (a couple of minutes) and measure; for work whose duration varies, extend the deadline programmatically from inside the worker — a heartbeat — rather than guessing one fixed value up front. Acme Shop's confirmation email normally completes in under a second, so its queue uses a 30-second window with no heartbeat; a separate report-generation queue with multi-minute jobs extends its deadline every 60 seconds while the worker is demonstrably still alive, and treats a missed heartbeat as a crash rather than a slow job. Whatever the ceiling your provider enforces on a single extension chain, plan for it — break work that can legitimately run longer into resumable steps instead of retrying the extension indefinitely.

Classify failure before retrying:

Set a maximum delivery count and send exhausted messages to a dead-letter queue with metadata that supports diagnosis. A dead-letter queue is not a disposal bin. Alert on it, assign ownership, provide a safe replay procedure, and avoid replaying an entire historical backlog into a dependency that is still unhealthy. Give the dead-letter queue a retention period longer than the source queue's — a message that exhausts retries after sitting near the end of the source queue's retention window has little time left to be diagnosed before it disappears from both places, which turns a recoverable failure into a silent data loss. Alert on any message landing in the dead-letter queue at all, not only on a volume threshold; a single dead-lettered order confirmation is worth a look even when the rate looks statistically unremarkable.

Scale workers from queue age and capacity

Queue depth alone is incomplete: a million tiny messages and a hundred expensive ones have different urgency. Monitor oldest-message age, arrival rate, successful completion rate, failure rate, processing duration, active workers, and per-dependency saturation. Scale workers only while downstream capacity, database pools, and third-party quotas can sustain them.

Estimate required throughput from the completion target. If 10,000 messages must complete within ten minutes after a peak and each worker handles 20 messages per second sustainably, the system needs enough healthy capacity to clear the arrival burst plus recover any backlog within that window. Add headroom for retries, deployments, uneven key distribution, and a failed worker group.

Limit concurrency per dependency, not just per worker. A fleet of workers can multiply pressure on one database partition or partner API. Use bulkheads and adaptive concurrency controls so lower-priority consumers do not starve critical workflows. Pause intake or shed optional work before saturation turns into a retry storm.

Complete the capacity calculation

Acme Shop expects a 12,000-message launch burst in 10 minutes. Existing backlog is 1,200 messages, and the completion objective is to clear both within 15 minutes. One worker processes 8 confirmations per second sustainably, but only 75% of nominal capacity is available after deployment headroom, retries, and the email-provider concurrency cap.

work_to_clear = 12,000 + 1,200 = 13,200 messages
required_rate = 13,200 / (15 * 60) = 14.7 messages/second
effective_worker_rate = 8 * 0.75 = 6 messages/second
workers_required = ceil(14.7 / 6) = 3 workers

Three workers satisfy this calculation only if their combined downstream limit is at least 18 messages/second and the queue partitions allow the work to spread. Configure a conservative maximum of three confirmation workers initially, alert before age consumes the remaining objective, and increase only after verifying email-provider, database, and queue saturation. This is a planning estimate; measure actual processing duration by message class and hot key before relying on it.

Set backlog SLOs that trigger automatic shedding

A capacity plan degrades gracefully only if something acts before it fails outright. Define backlog SLOs as explicit, monitored objectives rather than implicit hopes: an age SLO stating how old the oldest unprocessed message may get before it breaches the customer-facing completion promise, and a depth SLO bounding how large the queue may grow before it threatens retention or cost. Both should be measured continuously, not sampled at deploy time, because a backlog problem is rarely visible in producer-side metrics until it has already cost several minutes of age.

Acme Shop's completion objective is five minutes for accepted confirmation jobs. Its backlog SLOs translate that into two concrete triggers: warn when oldest-message age passes two minutes, and page when it passes four — one minute of margin before the customer-facing objective is broken. When the warning trigger fires, the admission path automatically defers the lowest-priority queued work (bulk marketing confirmations) at the producer, rather than waiting for a human to notice a graph. When the page trigger fires, on-call adds workers within the documented downstream limit or, if downstream capacity is already saturated, sheds a larger share of low-priority intake until age recovers. This is the same lag-aware flow control idea used by teams that export per-partition age to their monitoring system and treat it as a primary signal: age crossing a threshold is what changes producer behavior, not queue depth alone and not a human watching a dashboard in real time.

Codify the shedding decision, don't leave it to judgment under pressure: which categories of work are deferred first, what response the caller receives, how long deferral lasts, and who is paged if shedding itself fails to bring age back down.

Preserve ordering only where it matters

Global ordering is costly and often unnecessary. Partition work by an entity key, such as order ID or account ID, when operations for that entity must be processed in sequence. Expect hot keys and provide a plan for them: serialization, partition scaling, or a business rule that changes the workflow.

The mechanism differs by queue technology, but the shape is consistent: a Kafka partition key keeps records for one entity on one partition and preserves order for a single consumer of that partition; an SQS FIFO queue keeps strict order only within one message group ID and only while a message from that group is in flight; Azure Service Bus offers sessions for the same purpose. None of these give ordering across entities, and none of them survive a consumer that processes its partition or group with more than one worker at a time — check that constraint explicitly rather than assuming it from the queue's name. Where a workflow must process a strict sequence of steps for the same entity across multiple messages, look at the Sequential Convoy pattern rather than trying to reconstruct it by convention on top of a general-purpose queue.

Events can arrive late, duplicate, or out of order. Include an event version, source timestamp, and entity version where useful. Consumers should validate whether a message still represents an action that should be taken, and query the authoritative source when a stale event could cause harm.

Trace work across the asynchronous boundary

Propagate W3C trace context and application correlation IDs when producing and consuming messages. OpenTelemetry messaging conventions provide a provider-neutral vocabulary for spans and attributes. Record enqueue time, dequeue time, delivery attempt, queue age, message class, worker version, idempotency outcome, and dependency result without placing sensitive payloads in telemetry.

Use separate service-level objectives for acceptance and completion. For example, an API may acknowledge 99% of valid requests within 300 ms while 95% of accepted jobs complete within five minutes. The first SLO detects intake issues; the second detects worker, dependency, or capacity issues. Both are necessary to avoid a fast-but-stalled system.

Plan for outages and replays

Test the uncomfortable cases: a queue outage, a producer that publishes twice, a worker that dies after an external write, a poison message, a delayed dependency, a region failure, and a replay of messages created under an old schema. Verify that alerting detects rising age before retention is threatened, that operators can pause consumers safely, and that recovery does not overwhelm the origin.

For cross-region designs, decide whether queues are isolated per region, replicated, or routed to an active region. State the recovery point and recovery time tradeoffs, data residency constraints, and duplicate-delivery behavior during failover. A multi-provider queue strategy can reduce concentration risk, but bridge formats, monitoring, authentication, and replay semantics must be owned explicitly.

Validate, recover, and troubleshoot

Validate with a test order or approved canary. Positive validation publishes one message, observes one completed idempotency record, and confirms the customer-visible timeline. Negative validation publishes the same envelope twice and confirms that the second delivery is acknowledged without another provider call. Failure validation stops a worker after the provider accepts the request but before acknowledgement; restarting it must reconcile the provider request using the durable key, then record one completion. Monitor queue age, delivery count, provider errors, and downstream concurrency throughout; do not use a live customer campaign as a load test.

For recovery, first stop or reduce producers through their documented admission policy if age is increasing faster than capacity. Keep the queue and dead-letter evidence intact, restore the failed dependency or worker version, and resume consumers in small increments within downstream limits. Replay only a bounded, understood dead-letter cohort into an isolated or rate-limited path after correcting its cause. Do not purge a queue to make a dashboard green, replay an entire backlog at full speed, or acknowledge messages whose business result is unknown.

Related guides

• Reliable API Design
• Distributed Systems Latency Budgets
• Dependency Resilience

Queue-based load leveling checklist

Before production, confirm that work is safe to defer; acceptance is durable and idempotent; backlog, age, and tenant shares are bounded; consumers are idempotent; retries and dead-letter handling have owners; worker scaling respects downstream limits; edge and origin controls protect publish endpoints; and traces connect the request to final completion.
