Software architecture guide

Edge Compute Architecture: Safe, Fast, Provider-Neutral Design

Put deterministic delivery decisions near the user while keeping authority, private state, and expensive work in the systems designed to own them.

Published: Jul 14, 2026
Updated: Jul 15, 2026
Reading time: 11 min read

On this page

Edge compute can normalize a request, choose a public representation, enforce a route limit, or route to a healthy origin before an application server is involved. It improves delivery only when its work is bounded and its authority is explicit. It is not a reason to move payment, inventory, identity, or unbounded data work into every request path.

This discipline matters even more once the same edge compute architecture must hold across more than one provider or region. A managed edge orchestration layer keeps route classification, cache policy, and state boundaries enforced consistently, with MYO giving one team a single, provider-neutral edge design view of where a request stopped and why.

Overview

Outcome

Design a portable edge path that safely serves public cache hits, protects a private origin, and makes its hit, miss, rejection, and fallback decisions observable.

Overview

Prerequisites

A public hostname, TLS certificate, and a documented origin owner.
A route inventory that marks public, authenticated, and write paths.
Edge-to-origin authentication or private connectivity, plus a tested rollback path.
Edge and origin logs that share a request or trace ID.

Scenario: Acme Shop's edge compute architecture separates the fast path from authority

Acme Shop serves product pages in several regions. GET /products/{slug} is public and can tolerate a five-minute representation. Cart, account, and checkout routes cannot be shared-cached and must reach the authoritative application. Acme's edge compute architecture normalizes harmless marketing parameters, serves a public hit when available, and sends a bounded miss through an origin shield. Its origin denies direct public traffic and accepts only its delivery path.

Acme Shop request boundary

Customer
Requests a public product page or a private journey.
Edge policy
Classifies the route and removes untrusted forwarding headers.
Public cache
Answers only an approved public representation.
Origin shield
Collapses eligible misses before the private origin.
Private origin
Accepts only the trusted delivery path.
Authoritative data
Owns private state and write correctness.

Public product representations can stop at the edge; authenticated and write routes pass through the trusted delivery path to the authoritative origin.

1. Classify the route before choosing a cache policy

Use a short route contract, not a provider-specific rule name. A safe default is to deny shared caching unless a route has an explicit public representation.

Route class	Edge action	Shared cache	Authority and failure behavior
Public product page	Normalize and look up	Yes, key by path and approved locale	Serve a previously approved stale page only if product owners accept it.
Search suggestion	Rate-limit and look up	Usually short-lived	Origin remains authoritative; return a bounded unavailable response if needed.
Account or cart	Pass through with private headers	No	Authenticate and read at the application.
Checkout or payment callback	Pass through with strict limits	No	Use the authoritative service; never turn an uncertain write into a cache hit.

The edge must remove client-supplied forwarding identity headers and set its own trusted values at the proxy boundary. Do not use client IP as an authorization principal.

2. Define a minimal, provider-neutral cache contract

For Acme's public product page, the cache key is normalized path plus the selected locale. It excludes tracking parameters, cookies, authorization headers, and unbounded query strings. The application sets the semantic policy; the edge only implements it.

GET /products/trail-pack?utm_source=newsletter HTTP/1.1
Host: shop.example.com
Accept-Language: en-US,en;q=0.9

HTTP/1.1 200 OK
Cache-Control: public, max-age=60, s-maxage=300, stale-while-revalidate=60, stale-if-error=300
Vary: Accept-Language
Content-Type: text/html; charset=utf-8

Representative edge decision output

request_id=req_01H... route=product-page
cache_key=/products/trail-pack|locale=en
cache_status=HIT age=42 origin_contacted=false
response_cache_control="public, s-maxage=300"

stale-while-revalidate and stale-if-error are product decisions, not availability defaults. Acme may use them for a description or image, but not for stock, price confirmation, entitlement, account data, or checkout state. Responses with Set-Cookie, Authorization, customer-specific data, or a private cache directive do not enter the shared namespace.

Size the miss path

If a route receives R requests per second and its edge hit ratio is H, the initial origin demand is approximately R x (1 - H). At 1,000 requests/s and 95% hits, Acme plans for about 1,000 x 0.05 = 50 cache misses/s before considering purge or cold-cache spikes. Request collapsing matters because 500 simultaneous requests for one expired key should create one upstream fetch, not 500.

Set an origin concurrency budget that is lower than the origin's safe saturation point. A shield, per-key coalescing, short upstream deadline, and zero or one carefully justified retry protect the origin when the estimate is wrong.

Collapsing is usually scoped per key, per edge location, not globally. If Acme launches across twelve active locations at once, a cold key can still generate up to twelve simultaneous origin requests — one per location — even though each collapsed correctly on its own. The R x (1 - H) estimate is a steady-state lower bound, not a launch-day ceiling; size the shield's concurrency budget against the number of locations that can miss at once, and pre-warm high-traffic keys before a known launch.

3. Make direct-origin access fail closed

The edge is a delivery layer, not an origin firewall. Acme implements the following controls using the equivalent facilities of its provider, cloud, or network:

origin-access-policy:
  public-ingress: deny
  allowed-callers:
    - private-delivery-network
    - edge-service-identity
  required-request-properties:
    - authenticated-edge-to-origin-connection
    - edge-generated-request-id
  rejected-client-headers:
    - x-forwarded-for
    - x-forwarded-host
  route-limits:
    /checkout:
      methods: [POST]
      shared-cache: false
      request-body-max: 64KiB
      origin-timeout: 2s

Do not treat an allowlist of changing delivery IP ranges as the only proof of origin identity. Prefer private connectivity or a mutually authenticated, rotated edge service identity when the platform supports it. Keep a break-glass rollback that restores the prior reviewed policy, not an unrestricted public origin.

4. Validate success, failure, and recovery

Run these tests on a staging hostname or a narrow canary before a global rollout. Use approved test accounts and sanitized request IDs only.

Test	Expected result	Evidence	Recovery check
Public product cache hit	`200`, `cache_status=HIT`, no origin request	Edge decision and origin request count	Purge one test key; next request is one coalesced miss, then a hit.
Authenticated cart request	`200` only from application; not shared-cached	`Cache-Control: private` or `no-store`; no shared-cache record	Sign out and retry; no prior cart representation appears.
Direct origin request	Denied before the application handles it	Origin firewall or access log contains the denial	Restore the prior trusted route if an approved edge request is unexpectedly denied.
Bounded origin failure	Safe stale public page or documented `503`; no retry storm	Upstream duration, retry count, cache status	Re-enable the canary origin; confirm traffic returns gradually and stale serving stops.
Read-after-write on a state store	A read after a write returns the new value, via the authoritative path or a matched version token	Edge log shows the read routed to the authoritative path, or the token matched	Remove the temporary override once propagation is confirmed; normal routing resumes.

5. Define edge state boundaries for consistency and residency

Everything so far treats the edge as authority-free: it classifies, caches, and forwards, but does not own data. Edge platforms increasingly offer state primitives close to the request — regional key-value stores, single-writer coordination objects — and it is tempting to reach for them simply because they are close and fast. Edge state boundaries are the rules that keep that convenience from becoming a correctness or compliance problem.

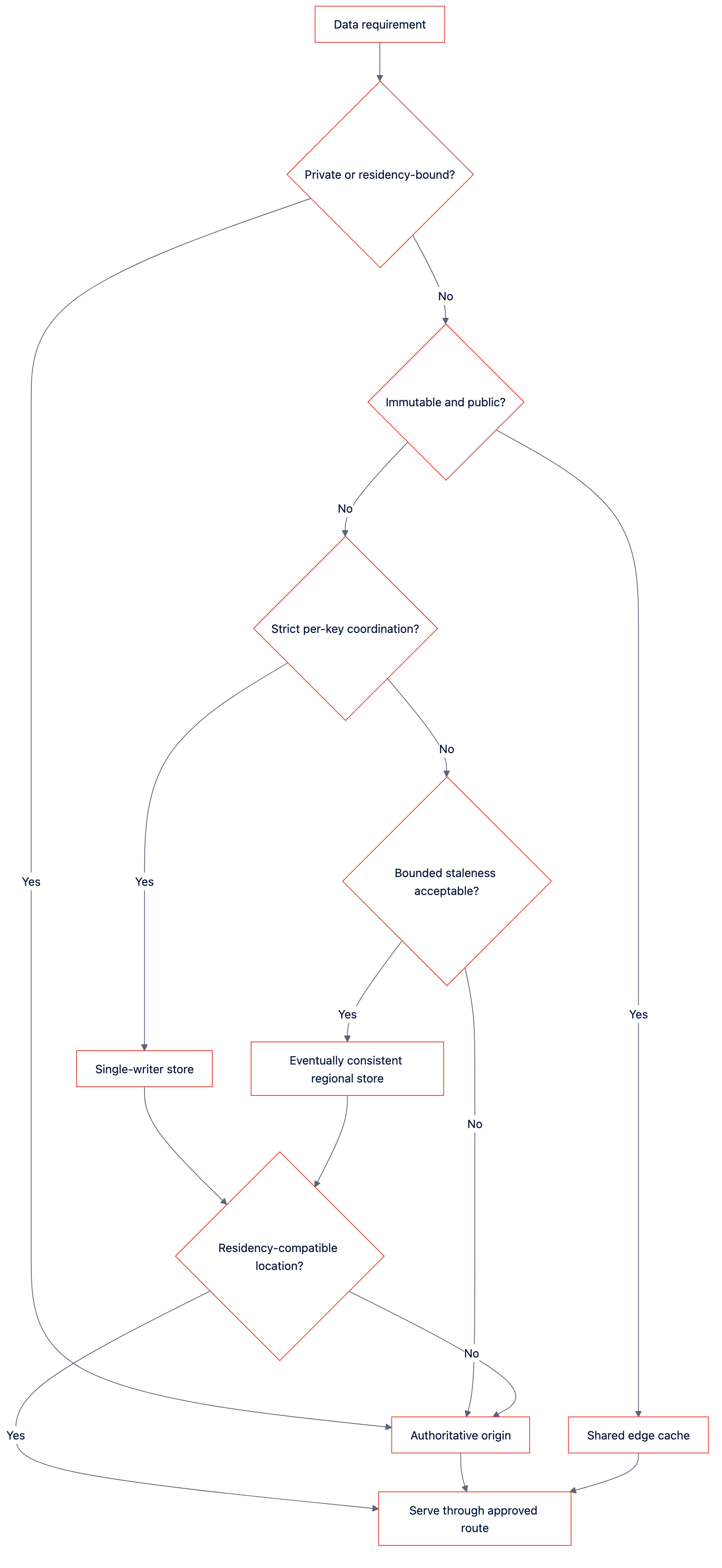

Choose edge state by consistency and residency needs

The closer a data item gets to identity, jurisdiction, or strict write correctness, the less suitable it is for a broadly distributed edge store.

Download:PNG SVG

Match the store to the consistency the data needs

Edge-adjacent stores come in two shapes. An eventually consistent store replicates a value to many locations with a propagation lag, often seconds; it suits feature flags or a cached entitlement hint. A strongly consistent, single-writer store routes every key's operations through one authoritative place, at the cost of latency, for a write that must be visible everywhere instantly; it suits a rate-limit counter or an idempotency record. Treat the choice as a per-data-class decision, recorded like Acme's cache contract:

edge-state-policy:
  product-catalog-flag:
    store: eventually-consistent-regional
    max-staleness: 30s
    residency: any
  checkout-idempotency-key:
    store: strongly-consistent-single-writer
    max-staleness: 0s
    residency: customer-region
  customer-profile-pii:
    store: origin-only
    max-staleness: n/a
    residency: eu-only

Design for read-your-writes, not just eventual convergence

A customer who updates a saved address and immediately reloads can land on a different edge location than the one that accepted the write, and see the change as lost until propagation catches up. Handle this deliberately: route the post-write read through the authoritative path for a bounded window, attach a version token the client echoes back so the edge can detect staleness, or document the window as accepted behavior. Leaving it undecided turns a platform detail into a support ticket.

Treat jurisdiction as a state boundary too

Acme Shop's EU launch adds a boundary unrelated to cache freshness: profile and order data from EU visitors must stay inside the EU, even though the same product-page edge locations serve customers worldwide. Extend the route-classification table from Section 1 with a residency column, and audit the state store and any outbound call an edge function makes on a regulated route. A violation here is not only a wrong answer; it can be a compliance incident.

Make state-boundary decisions visible across every provider

A consistency model, a staleness budget, and a residency rule are usually configured separately, on whichever provider hosts the store — so a multi-provider path can quietly give three different answers to "is this value current." Optimi's managed edge orchestration keeps that policy declared once and observed through MYO, so an exception surfaces as one incident with one owner, not a mismatch found in production.

Bound the compute, not just the state

Edge compute instances are typically short-lived and CPU-time constrained by design, often a default budget measured in tens of milliseconds. Do not rely on an in-memory variable or open connection surviving between invocations; treat every invocation as stateless unless it explicitly reads from a state store above. This constraint also keeps an edge compute architecture portable across a change of provider.

Troubleshooting

Symptom	Likely cause	Safe check	Recovery
Personalized content appears on a public page	Cache key omitted a representation dimension or a private response was marked public	Inspect sanitized cache headers and key dimensions	Disable shared cache on the route, purge affected keys, then fix and test the contract.
Origin load rises after a purge	Misses are not collapsed or the shield is bypassed	Compare unique cache keys with upstream requests	Re-enable coalescing, limit purge scope, and warm only approved public keys.
Legitimate requests receive origin denial	Edge identity, host, or proxy header policy changed	Correlate edge request ID with the origin denial reason	Roll back only the recent access-policy change and retest the trusted path.
Stale product pages persist too long	TTL, purge scope, or response headers conflict	Inspect response `Age`, cache status, and deployment version	Correct the response policy, purge the precise representation, and verify propagation.
Traffic flaps between origins	Health check is too shallow or has no hysteresis	Compare journey health with steering events	Add route-level health criteria, dwell time, and a measured recovery threshold.
Cart update vanishes after a write	Read hit a replica that had not yet received the update	Compare the write's timestamp against the replica's last-sync time	Route the post-write read through the authoritative path, or check the version token.
Customer data shows a processing region outside its jurisdiction	An edge function or state store ran outside the approved residency boundary	Compare execution and storage region fields against the approved list	Pin the route's compute and storage to the approved jurisdiction; audit until no exception remains.
